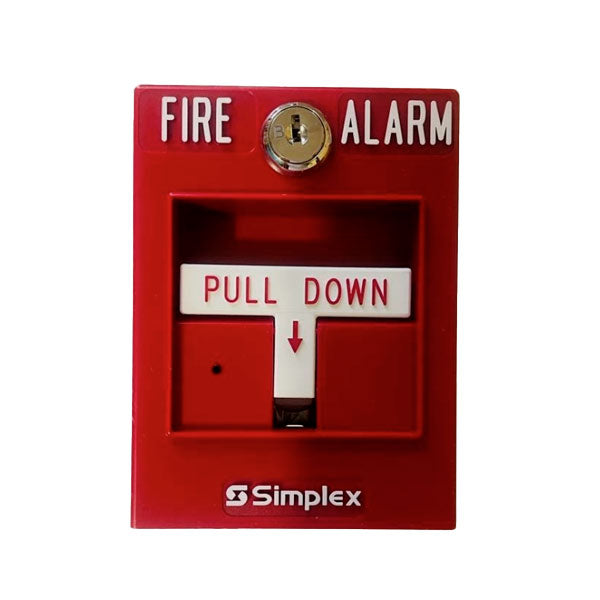

Simplex 4099-9004 single-action pull station used for fire alarm systems, with a red cover and clear activation handle.
Roll over image to zoom in Click on image to zoom
Simplex 4099-9004 single-action pull station used for fire alarm systems, with a red cover and clear activation handle.

Simplex 4099-9004 Addressable Single-Action Pull Station, IDNet, Key Reset

Simplex
Price:
$94.65 CAD
Stock:
In Stock

Availability

Mfr. part #: 4099-9004
In stock: 275 availableReady to ship today
Delivery across Canada in 2 to 4 business daysFree shipping on orders over $250 CAD

Buying for a project or in bulk?Request a volume quote

Genuine stockBrand new, factory sealed
1 year warrantyOn every product
30 day returnsSee our return policy
Secure checkoutEncrypted payments
Need help with this part?Call +1 909 235-5810 or email info@jemsystems.ca
American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa

Frequently bought together

The Simplex 4099-9004 is a single-action addressable manual fire alarm station. An integral addressable module (IAM) takes power and data from Simplex IDNet over a single pair and reports the station's status to the panel.

  • One IDNet address per station, set on an 8-position DIP switch
  • Wiring up to 762 m (2,500 ft) from the panel; up to 3,048 m (10,000 ft) total including T-taps
  • Screw terminals for in/out wiring, 18 to 14 AWG
  • Key reset with tamper-resistant lock keyed like Simplex fire alarm cabinets; break-rod supplied (use optional)
  • Red Lexan polycarbonate housing, 127 × 95 × 25 mm (5 × 3.75 × 1 in.)
  • Indoor use, 0 to 49°C; up to 93% RH at 38°C
  • UL, ULC and CSFM listed, FM approved

Surface or semi-flush mounting. Note: the 4099-9004CA is a different two-stage station; check the suffix when ordering.
