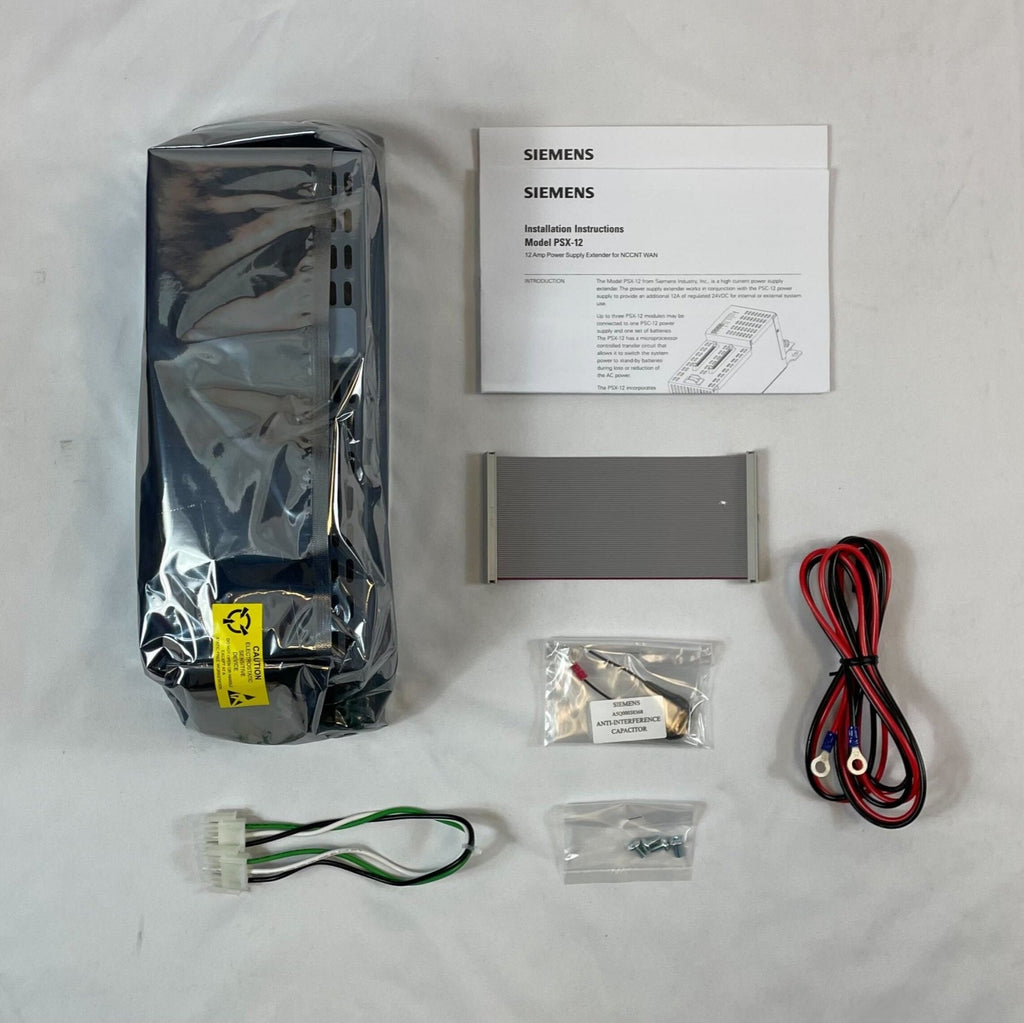

Siemens PSX-12 power supply extender with 12A capacity, shown with connectors and wiring for industrial or electronic applications.
Roll over image to zoom in Click on image to zoom
Siemens PSX-12 power supply extender with 12A capacity, shown with connectors and wiring for industrial or electronic applications.

Siemens PSX-12 Power Supply Extender, 12 A at 24 VDC (500-034120)

Siemens
Price:
$3,042.55 CAD
Stock:
In Stock

Availability

Mfr. part #: PSX-12
In stock: 2 availableReady to ship today
Delivery across Canada in 2 to 4 business daysFree shipping on orders over $250 CAD

Buying for a project or in bulk?Request a volume quote

Genuine stockBrand new, factory sealed
1 year warrantyOn every product
30 day returnsSee our return policy
Secure checkoutEncrypted payments
Need help with this part?Call +1 909 235-5810 or email info@jemsystems.ca
American Express Apple Pay Google Pay Mastercard PayPalShop Pay Visa

Frequently bought together

The Siemens PSX-12 (part 500-034120) is a power supply extender that adds 12 A at 24 VDC to a FireFinder XLS, Desigo Modular or Cerberus PRO Modular panel. It expands the main PSC-12 power supply rather than replacing it, and as an addressable module it reports terminal loading, ground faults and its own failures to the panel.

  • 12 A at 24 VDC over two terminals: one power-limited at 4 A and one non-power-limited at 12 A, total not to exceed 12 A
  • Universal 120 to 240 VAC, 50/60 Hz input; 3.5 A max at 120 VAC, 2.0 A at 240 VAC
  • 150 mA standby current at 24 V; no backplane current
  • 18 A breaker on the battery input; 15 to 100 Ah batteries
  • Up to three extenders per PSC-12, in one of four module spaces in a CAB enclosure
  • UL 864 and CAN/ULC-S576 listed; 32 to 120 °F

No battery charger: charging is handled by the PSC-12. Do not confuse with the PSX-12M (S54430-C27-A1), the Cerberus PRO Modular variant that pairs with a PSFA.
