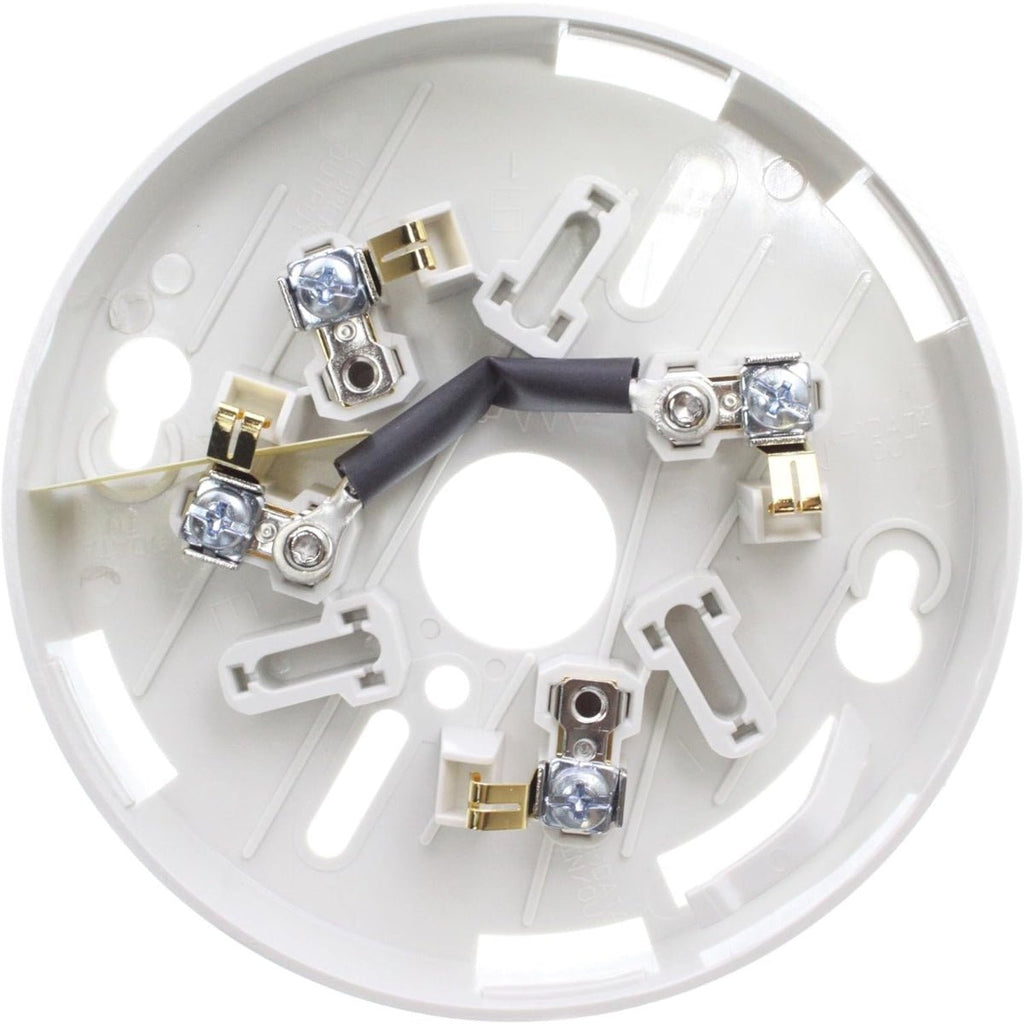

The Edwards SIGA-SB is the standard mounting base for Signature Series intelligent detectors. It passes the signaling line circuit through the detector location and is the base to choose when a SIGA-LED remote alarm indicator is required.
- SLC terminals plus remote LED terminals for the SIGA-LED
- Accepts 12 to 18 AWG wire (16 or 18 AWG preferred)
- Fits North American single-gang and 3-1/2 or 4 in. octagon boxes, and BESA boxes on 60.3 mm centres
- White high-impact polymer housing; optional SIGA-TS trim skirt
- Operating range 0 to 49 °C, 0 to 93% RH non-condensing
- UL 268, UL 521 and CAN/ULC-S529
For a relay or line isolator at the detector, see the SIGA-RB and SIGA-IB bases. For a 4 in. square box, use the SIGA-SB4.
| Brand | Edwards |
|---|---|
| Manufacturer part number | SIGA-SB |
| UPC | 793016019776 |
| Product type | Bases |
| Shipping weight | 0.3 lb |
| Condition | Brand new, factory sealed |
| Warranty | 1 year |
| Currency | Canadian dollars (CAD) |
