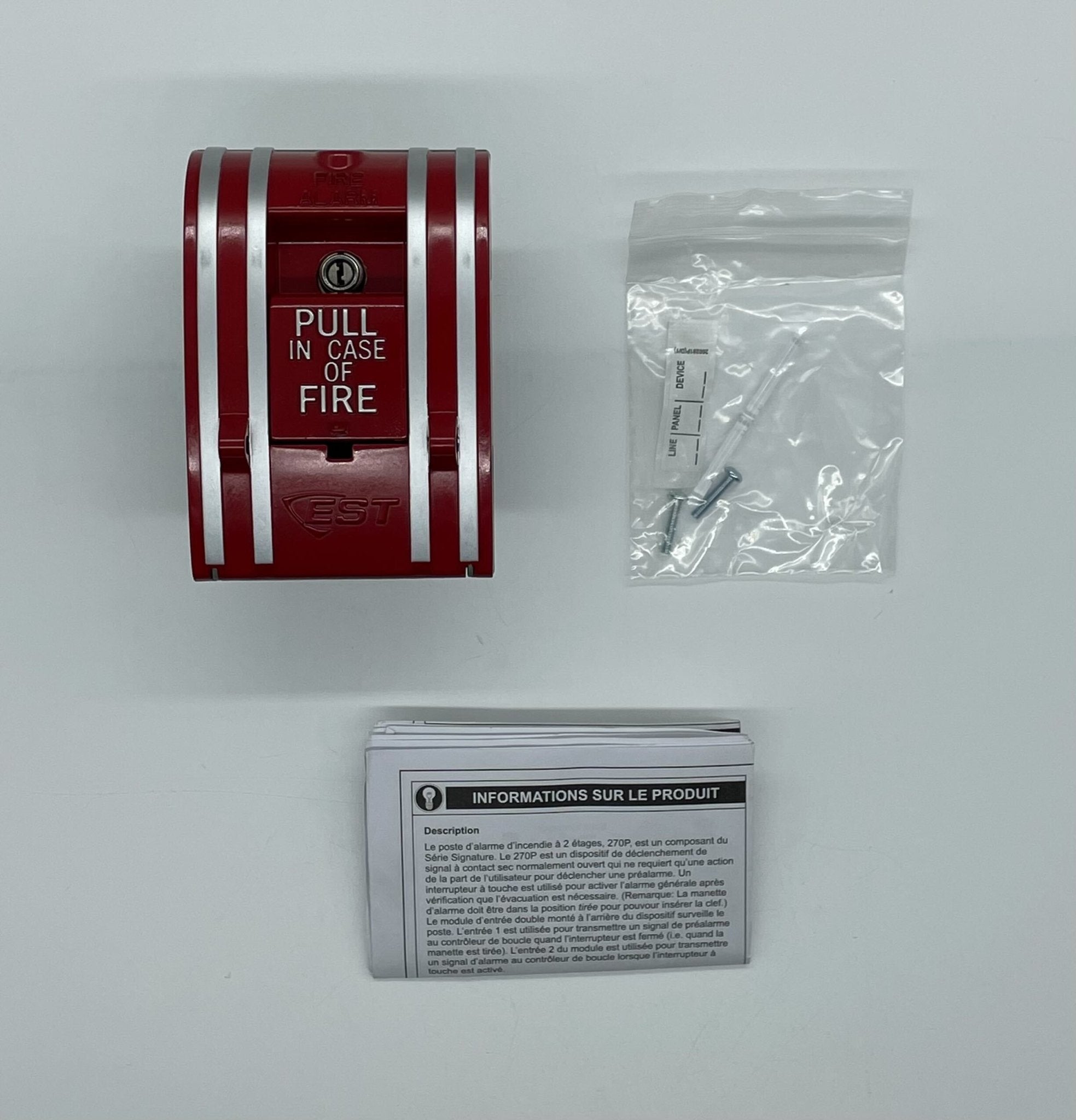

The Edwards SIGA-270P is a Signature Series single-action, two-stage presignal manual fire alarm station with a general alarm keyswitch and English markings. Pulling the die-cast lever breaks the glass rod and sends the presignal; staff then escalate to general alarm with the GA keyswitch.
- Single action, two stage operation
- Uses two module addresses
- Standby 396 µA; activated 680 µA
- 15.2 to 19.95 VDC; terminals 12 to 18 AWG
- 0 to 49 °C; UL, ULC and FM listed
- Glass rod deters tampering but is not needed for operation
Mount on a 4 in square box, 1-1/2 in deep, with a 1-gang 1/2 in raised cover. The 276-K1 reset key is supplied; the general alarm key is ordered separately (32997 in Canada).
| Brand | Edwards |
|---|---|
| Manufacturer part number | SIGA-270P |
| UPC | 793016020000 |
| Product type | Pull Stations |
| Shipping weight | 1.3 lb |
| Condition | Brand new, factory sealed |
| Warranty | 1 year |
| Currency | Canadian dollars (CAD) |
