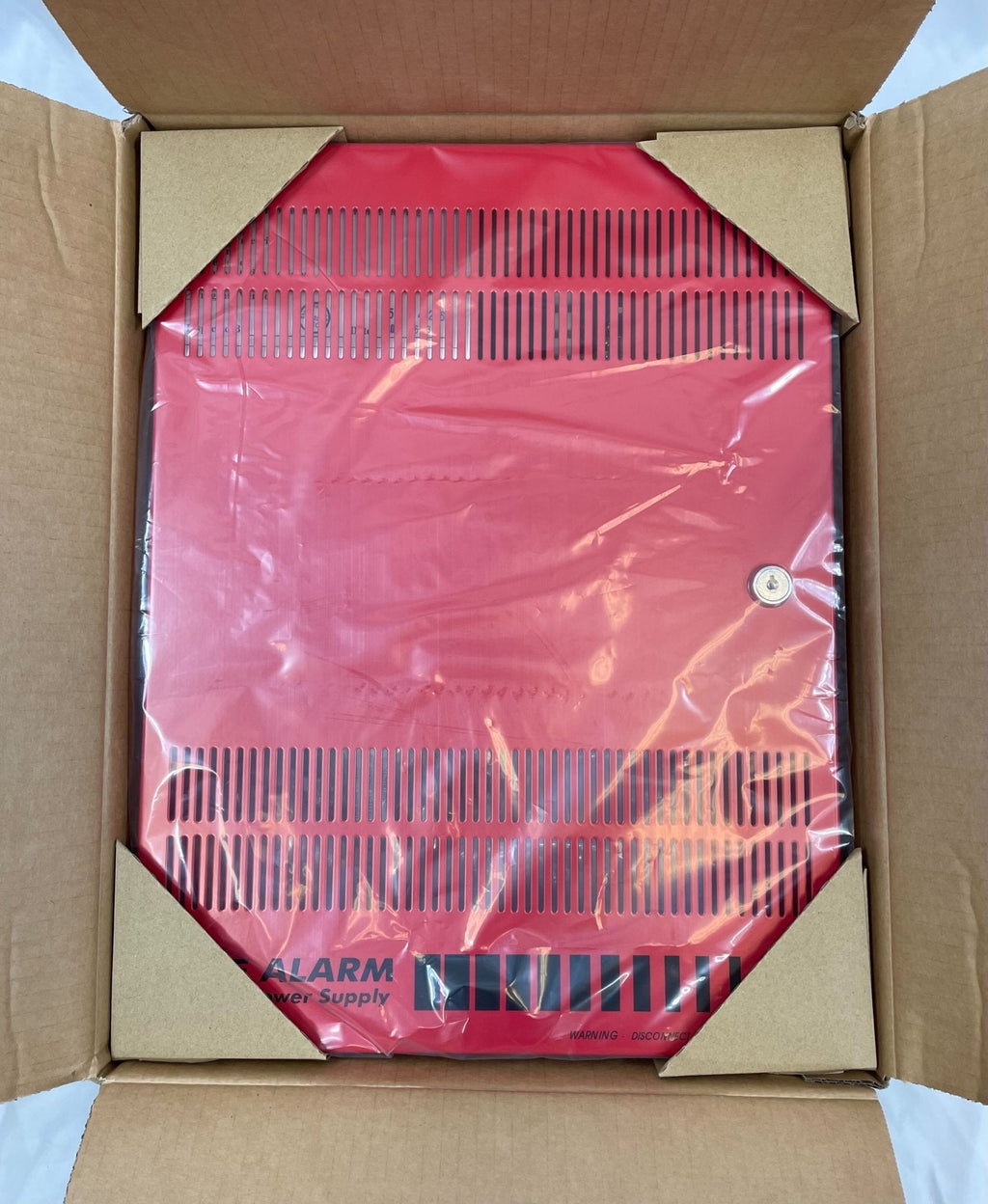

The Edwards BPS6A/230 is a 6.5 A remote booster power supply for 220-240 VAC line input, in a keyed, lockable steel cabinet. It extends a system where the panel has run out of notification power or where voltage drop on long circuits is a problem, and is supervised by the host system.
- 6.5 A max total, 3.0 A per circuit at 24 VDC
- Four Class B circuits, convertible to two Class A, each configurable as NAC or 24 VDC auxiliary
- 220-240 VAC, 50/60 Hz, 390 W
- Output rates: continuous, 3-3-3 temporal or follow host panel coding
- Separate 200 mA, 24 VDC auxiliary output; 15 kΩ end-of-line resistor
- Own batteries and charger; 18 to 12 AWG terminals; indoor dry locations, 32 to 120 °F
BPS6A is the 120 VAC model and BPS6AC the ULC variant.
| Brand | Edwards |
|---|---|
| Manufacturer part number | BPS6A/230 |
| UPC | 793016035486 |
| Product type | Power Supplies |
| Shipping weight | 0.99 lb |
| Condition | Brand new, factory sealed |
| Warranty | 1 year |
| Currency | Canadian dollars (CAD) |
