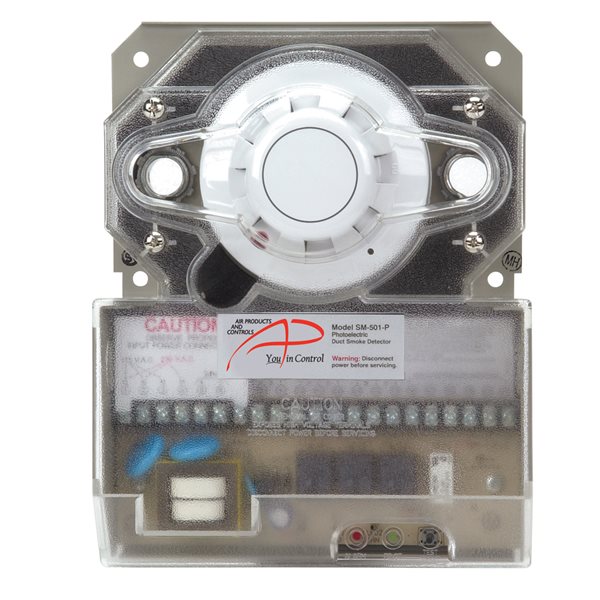

The APC (Air Products and Controls) SM-501-P is a four-wire photoelectric duct smoke detector with universal voltage input. It detects smoke and combustion products in air moving through HVAC supply or return ducts and is a retrofit option for the discontinued RW Series.
- Operates on 230 VAC, 115 VAC, 24 VAC or 24 VDC
- Two 10 A Form C alarm contacts and one 10 A Form C trouble contact
- Air velocity range 500 to 4,000 ft/min
- Interconnect up to 30 units for common functions
- Plug-in photoelectric head with internal dust filtering
- Steel back box with clear cover and four captive screws
- UL, cUL, CSFM and MEA listed
Sampling tubes are ordered separately to suit the duct width. Compatible with the WP-1 weatherproof enclosure.
| Brand | APC |
|---|---|
| Manufacturer part number | SM-501-P |
| UPC | 8144498020057 |
| Product type | Duct Detectors |
| Shipping weight | 0.99 lb |
| Condition | Brand new, factory sealed |
| Warranty | 1 year |
| Currency | Canadian dollars (CAD) |
